Vacuum Forming Guide: Tooling Cost & Design Rules

Vacuum forming gets dismissed as the cheap option, usually by people who have never costed a 4 mm ABS enclosure both ways. For a large, shallow, low-volume shell it is not the cheap option — it is the correct one. The tool is a machined aluminium or epoxy block instead of hardened steel, it arrives in two weeks instead of six, and it costs a tenth as much.

What changes is where the risk sits. In injection molding, the risk is in the tool. In vacuum forming, the risk is in the sheet: material is 55–70% of part cost, and every design decision that wastes sheet — a bad draw ratio, an over-deep pocket, a part nested badly on the sheet — is a permanent tax on every unit you make.

1. Where vacuum forming actually wins

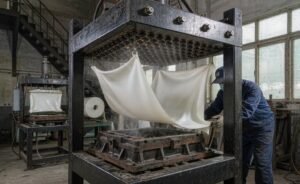

Thermoforming is a stretch, not a fill. A heated sheet is pulled over a male or into a female mold, so material thins wherever it stretches. That single physical fact explains both its strengths and its limits.

Choose vacuum forming when:

• The part is large. Above roughly 500 × 500 mm, tooling cost for injection molding climbs steeply while a forming tool stays in the low thousands.
• Volume is under ~3,000–5,000 pieces a year. Below that, tooling amortisation dominates and forming wins on total cost.
• You need thick walls. 4–12 mm sheet is routine. Moulding the same wall thickness by injection means long cooling cycles and sink marks.
• Tooling must be fast. Prototype tools in 5–8 days, production tools in 10–15. A design iteration costs hundreds, not thousands.
• The geometry is a shell. Enclosures, trays, covers, liners, machine guards, medical shells, agricultural tanks, cold-chain boxes.

2. Thick wall, thin wall, twin sheet — pick the right one

Thermoforming variants. Pressure forming adds roughly 15–25% to tooling but can match injection-molded surface detail.

Twin-sheet is the variant buyers underuse. A twin-sheet pallet or case replaces an assembled two-part injection molding with one cycle, no fasteners, and a hollow core that is stiffer than either sheet alone. For anything that needs to be hollow and rigid in low volume, it is usually the best answer.

3. Tooling: what a vacuum forming mold actually is

Forming tools are not built to survive pressure, they are built to hold shape and pull heat. That is why they are cheap — and why tool material matters more than most buyers expect.

Forming tool options. Aluminium is the right answer for most production programs between 1,000 and 30,000 parts.

4. Six design rules that decide whether your part forms

Draw ratio

Draw ratio is depth divided by the smallest width of the opening. Keep it under 1:1 for reliable wall distribution; 1.5:1 is possible with a plug assist, and beyond 2:1 you are fighting the process. This is the number that most often kills a design, and it is rarely on a drawing.

Wall thinning

Assume the material thins to 40–60% of nominal at the deepest, sharpest corner. A 3 mm sheet becomes 1.4 mm there. If your structural or sealing requirement needs 2 mm minimum, specify 4 mm sheet, or reshape the corner.

Draft angle

Minimum 3°, 5° preferred, and 7° on textured surfaces. Vacuum forming has no ejection force to speak of, but a vertical wall drags and marks.

半径

Corner radius at least equal to sheet thickness, ideally 1.5×. A sharp internal corner on a 5 mm sheet will thin to near-nothing and tear.

アンダーカット

Any undercut needs a movable insert, a split tool, or a secondary operation. A 2 mm return lip on the open edge of a cover is normal and usually handled by the trim; an internal snap feature is not. Tell your toolmaker before the tool is cut.

Texture and grain

Texture depth is limited by sheet thickness — roughly 0.05 mm of grain needs 1 mm of sheet to avoid showing through. Deep grain on thin sheet reads as blotchy. Also budget for the fact that grain hides minor surface marks, which is often a reason to add it deliberately.

5. Material selection

Forming materials. Service temperature is continuous-use, not short-peak; verify against the specific grade.

6. Where the cost actually goes

This is the difference between a buyer who negotiates and a buyer who understands the price. In vacuum forming, material dominates.

Indicative cost structure for a mid-size thick-wall part. Thin-wall packaging shifts even further toward material.

7. Tolerance reality check

Vacuum forming holds looser tolerances than injection molding, and no amount of tooling spend fully closes the gap. Plan around it rather than fighting it.

As-formed capability. Trimming on a machined jig is the single most effective way to tighten a forming tolerance.

The practical consequence: never tolerance a formed feature that has to mate with a moulded or machined part. Instead, design an adjustable interface — an oversized flange, a slotted hole, a separate gasket — and tolerance the interface, not the shell.

8. Trimming and finishing

Forming produces a part with a rough, uneven perimeter. Everything downstream of the form is what makes it a product.

• 5-axis CNC trimming — the standard for production. Accurate to ±0.2 mm, needs a dedicated jig, adds tooling cost of $500–$2,000 per part number.
• Die cutting / punch trimming — fast and cheap for high volume, but only for simple perimeters.
• Bonding and welding — solvent bonding for ABS/PVC, hot-plate or ultrasonic welding for PE/PP, adhesive for mixed materials.
• Inserts and hardware — press-fit, heat-set or bonded. Heat-set inserts in thick-wall forming work well; in thin-wall they do not.
• 印刷 — screen printing and pad printing both work on formed surfaces, but print after forming, not before, or the image distorts.

9. Six defects you will meet

Common thermoforming defects. Webbing is the one to design out — it cannot be fixed in processing.

10. The break-even calculation you should actually run

Every "should I switch to injection molding" decision reduces to one comparison. Here it is with real numbers.

So at 2,000 a year, forming is correct. At 6,000, moulding is. The formula is simply the tooling difference divided by the unit price difference — and the honest version includes cycle time, scrap rate, freight and the cost of a design change, which usually pushes the break-even point higher than the simple calculation suggests.

One more factor: if the design is still moving, forming's cheap tooling is worth more than its unit price. A $4,500 tool you can afford to scrap twice beats a $42,000 tool you are afraid to change.
