Choosing the right manufacturing process for plastic products1 is a pivotal decision that affects cost, production efficiency, and product quality. Two popular methods, thermoforming and injection molding, often come into consideration. But can thermoforming2 serve as a viable alternative to injection molding? This article provides an in-depth analysis, exploring definitions, applications, pros and cons, workflows, material compatibility, design considerations, and related technologies to help you decide.
Thermoforming shapes heated plastic sheets over molds using vacuum or pressure, while cetakan injeksi3 injects molten plastic into molds under high pressure for precise, high-volume production.
Both processes have unique strengths, and understanding them is key to making an informed choice. Let’s dive into the details.
Thermoforming selalu lebih murah daripada cetakan injeksi.Salah
Thermoforming often has lower tooling costs, but injection molding can be more cost-effective for high-volume production due to faster cycle times.
Injection molding is only suitable for small parts.Salah
Injection molding can produce both small and large parts, though it excels in high-precision, complex designs.
- 1. What Are Thermoforming and Injection Molding?
- 2. When Should You Use Thermoforming Instead of Injection Molding?
- 3. What Are the Pros and Cons of Thermoforming vs. Injection Molding?
- 4. How Do Thermoforming and Injection Molding Processes Work?
- 5. What Materials Are Compatible with Thermoforming and Injection Molding?
- 6. What Design Considerations Apply to Thermoforming?
- 7. How Do You Decide Between Thermoforming and Injection Molding?
- 8. What Related Technologies Complement These Processes?
- 9. Kesimpulan
What Are Thermoforming and Injection Molding?
To evaluate whether thermoforming can replace injection molding, we first need to define each process clearly.
Thermoforming heats a plastic sheet and forms it over a mold using vacuum or pressure, while injection molding melts plastic pellets and injects them into a mold under high pressure.
| Proses | Definisi | Common Aliases |
|---|---|---|
| Thermoforming | Heating a plastic sheet and shaping it over a mold using vacuum or pressure. | Vacuum forming, pressure forming |
| Cetakan Injeksi | Meleleh pelet plastik4 and injecting them into a mold under high pressure. | Plastic injection molding |

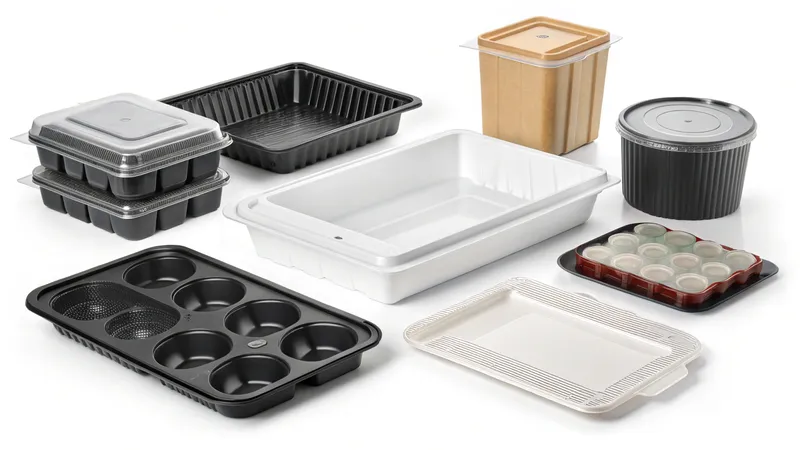

Thermoforming
Thermoforming begins with a flat thermoplastic sheet, which is heated until pliable. The sheet is then stretched over a single-sided mold, and vacuum suction or air pressure shapes it into the desired form. Once cooled, the part is trimmed and finished. This method is widely used for large, thin-walled items like packaging trays, automotive panels, and medical device housings.

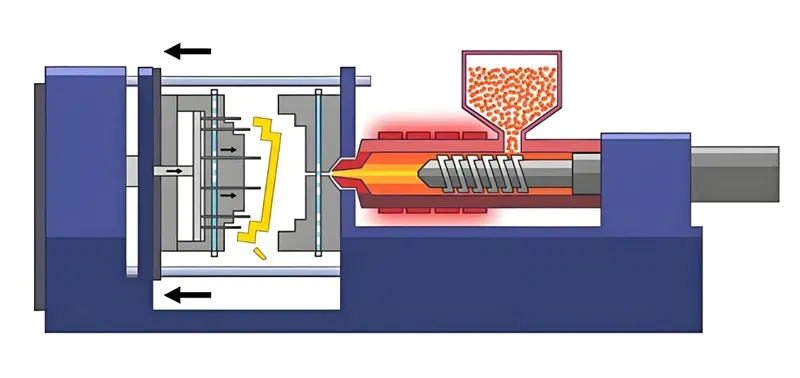

Cetakan Injeksi
Injection molding involves feeding plastic pellets into a heated barrel, where they melt into a viscous liquid. This molten plastic is then injected into a double-sided mold under high pressure. After cooling, the mold opens, and the solidified part is ejected. It’s ideal for producing intricate, high-precision components such as gears, bottle caps, and electronic enclosures, especially in large quantities.
Thermoforming is primarily used for large parts.Benar
Thermoforming excels at producing large, thin-walled parts due to its ability to handle sheets up to 10’ x 18’.
Injection molding cannot produce large parts.Salah
While less common for very large parts, injection molding can handle sizable components, though at higher tooling costs.
When Should You Use Thermoforming Instead of Injection Molding?
The suitability of thermoforming as an alternative to injection molding depends on your project’s specific needs, such as volume produksi5, part size, and design complexity.
Thermoforming is ideal for large parts, small to medium production runs (250–5,000 parts), and rapid prototyping, while injection molding shines in high-volume, complex, small-part production.
| Faktor | Thermoforming | Cetakan Injeksi |
|---|---|---|
| Volume Produksi | Best for 250–5,000 parts annually | Best for 3,000+ parts annually |
| Ukuran Bagian | Suited for large parts (up to 10’ x 18’) | Best for small to medium parts |
| Kompleksitas Desain | Handles simple geometries with larger tolerances | Excels at complex designs with tight tolerances |
| Biaya Perkakas | Lower (aluminum or composite molds) | Higher (steel molds) |
| Waktu Pimpin | Shorter (0–8 weeks for tooling) | Longer (12–16 weeks for tooling) |
Skenario Aplikasi
-
Thermoforming:
-
Large items like refrigerator liners, bathtubs, and signage.
-
Small to medium runs (250–5,000 parts annually).
-
Quick prototyping due to faster tooling development.
-
-
Cetakan Injeksi:
-
Small, detailed parts like connectors, toys, and medical devices.
-
High-volume production (3,000+ parts annually) with rapid cycle times.
-
Applications needing precise, intricate designs.
-
Thermoforming is faster for prototyping than injection molding.Benar
Thermoforming’s simpler tooling process allows for quicker setup and prototyping.
Injection molding cannot handle large parts.Salah
Injection molding can produce large parts, though it’s less cost-effective than thermoforming for very large items.
What Are the Pros and Cons of Thermoforming vs. Injection Molding?
A side-by-side comparison of advantages and limitations reveals when thermoforming can substitute for injection molding.
Thermoforming offers lower tooling costs and faster lead times but lacks in design complexity, while injection molding provides precision and scalability at a higher initial investment.
| Aspek | Thermoforming | Cetakan Injeksi |
|---|---|---|
| Biaya Perkakas6 | Lower (aluminum or composite molds) | Higher (steel molds) |
| Waktu Pimpin | Shorter (0–8 weeks) | Longer (12–16 weeks) |
| Volume Produksi | Cost-effective for 250–5,000 parts | Cost-effective for 3,000+ parts |
| Bagian Geometri | Suited for large, simple designs with uniform thickness | Ideal for complex, detailed parts with variable thickness |
| Limbah Material | Higher waste (recyclable) | Minimal waste per part |
| Presisi | Larger tolerances (±0.020 inches) | Tight tolerances (±0.005 inches) |
Kelebihan Thermoforming
- Cost-Effective Tooling: Uses affordable aluminum or composite molds.
-
Kecepatan: Faster tooling lead times make it great for quick turnarounds.
-
Large Parts: Easily handles oversized components.
Kontra Thermoforming
-
Limited Complexity: Struggles with intricate details or variable thicknesses.
-
Limbah: Produces more scrap material, though it’s recyclable.
-
Lower Precision: Less suited for parts requiring tight tolerances.
Kelebihan Cetakan Injeksi
-
High Precision: Achieves tight tolerances for detailed designs.
-
Efficiency at Scale: Lower per-part costs in high volumes.
- Material Savings: Minimal waste during production.
Kontra Cetakan Injeksi
-
High Upfront Costs: Expensive steel molds increase initial investment.
-
Longer Lead Times: Tooling takes longer to produce.
-
Size Constraints: Less practical for very large parts.
Thermoforming is always better for large parts.Benar
For very large parts, thermoforming is typically more practical and cost-effective.
Injection molding is never used for prototyping.Salah
Injection molding can be used for prototyping, especially for high-volume products, though it’s less common.
How Do Thermoforming and Injection Molding Processes Work?
Understanding the workflows of each method highlights their operational differences.
Thermoforming heats a plastic sheet and forms it over a mold, while injection molding melts plastic pellets and injects them into a mold under high pressure.
Thermoforming Workflow
-
Pemanasan: A thermoplastic sheet is heated until pliable.
-
Pembentukan: The sheet is stretched over a mold using vacuum or pressure.
-
Pendinginan: The part cools to retain its shape.
-
Pemangkasan: Excess material is removed, and finishing is applied.
Key factors include heating temperature, vacuum strength, and cooling duration7, which depend on the material and design.
Alur Kerja Cetakan Injeksi
-
Meleleh: Plastic pellets are melted in a barrel.
-
Injection: Molten plastic is injected into a mold under high pressure.
-
Pendinginan: The mold cools to solidify the part.
-
Ejection: The finished part is ejected from the mold.
Critical parameters include injection pressure, mold temperature, and cooling time, adjusted for material and part requirements.
Thermoforming requires less energy than injection molding.Salah
Injection molding often demands more energy due to high pressures and temperatures.
Both processes can use the same types of plastics.Benar
Both can utilize thermoplastics like ABS and PP, though in different forms (sheets vs. pellets).
What Materials Are Compatible with Thermoforming and Injection Molding?
Material choice significantly impacts the feasibility of each process.
Thermoforming uses lembaran termoplastik8 like PET, PVC, and ABS, while injection molding uses pellets of thermoplastics and thermosets like ABS, PC, and PE.
| Proses | Bahan Umum | Catatan |
|---|---|---|
| Thermoforming | PET, PVC, ABS, PP, PS (sheets) | Affects formability and strength |
| Cetakan Injeksi | ABS, PC, PE, PP, PS (pellets) | Includes plastik rekayasa9 |
Bahan-bahan Thermoforming
-
PET: Excellent for clear packaging.
-
PVC: Offers chemical resistance.
-
ABS: Strong and impact-resistant.
-
PP: Flexible and durable.
-
PS: Cost-effective for simple shapes.
Bahan Cetakan Injeksi
-
ABS: Tough and versatile.
-
PC: High strength and transparency.
-
PE: Flexible and resilient.
-
PP: Chemically resistant and versatile.
-
PS: Rigid and easy to mold.
Thermoforming can use the same materials as injection molding.Benar
Both processes handle similar thermoplastics, though in sheet vs. pellet form.
Thermosetting plastics are commonly used in thermoforming.Salah
Thermoforming uses thermoplastics, while injection molding can also process thermosets.
What Design Considerations Apply to Thermoforming?
Switching to thermoforming requires adapting to its design constraints.
Thermoforming demands ketebalan dinding yang seragam10, konsep sudut11, and planning for trimming as key design considerations.
Thermoforming Design Checklist
-
Ketebalan Dinding Seragam: Maintain consistency to prevent thinning.
-
Sudut Konsep: Use 1–5 degrees for easy mold release.
-
Ukuran Bagian: Ensure compatibility with equipment (up to 10’ x 18’).
-
Operasi Sekunder: Account for trimming and finishing needs.
Thermoforming allows for variable wall thickness.Salah
Uniform thickness is critical to avoid defects in thermoforming.
Sudut rancangan tidak diperlukan dalam thermoforming.Salah
Draft angles facilitate part removal from the mold.
How Do You Decide Between Thermoforming and Injection Molding?
A systematic approach can guide your choice between these processes.
Opt for thermoforming for large parts, small to medium runs, and prototyping; choose injection molding for high-volume, complex, small-part production.
Kerangka Kerja Pengambilan Keputusan
-
Volume Produksi:
-
250–5,000 parts: Thermoforming.
-
3,000+ parts: Injection molding.
-
-
Ukuran Bagian:
-
Large (>10’ x 18’): Thermoforming.
-
Small to medium: Injection molding.
-
-
Kompleksitas Desain:
-
Simple, larger tolerances: Thermoforming.
-
Complex, tight tolerances: Injection molding.
-
-
Biaya:
-
Low volume (<5,000): Thermoforming is cheaper.
-
High volume: Injection molding reduces per-part cost.
-
Thermoforming is always best for low-volume production.Salah
For very low volumes, alternatives like 3D printing may be more economical.
Injection molding is never suitable for large parts.Salah
It can produce large parts, though less Ladder-efficiently than thermoforming.
Exploring related technologies provides context for integrating thermoforming or injection molding into your workflow.
Key related technologies include ekstrusi lembaran12 for thermoforming and mold making for injection molding, alongside finishing processes13.
-
Hulu:
-
Sheet extrusion (thermoforming).
-
Pellet production (injection molding).
-
-
Hilir:
-
Assembly (e.g., attaching fittings).
-
Finishing (e.g., painting).
-
-
Alternatif:
-
Blow molding (hollow parts).
-
Rotational molding (large hollow items).
-
Thermoforming and injection molding are the only plastic manufacturing methods.Salah
Alternatives like blow molding and compression molding serve specific needs.
Kesimpulan
Thermoforming can indeed replace injection molding for plastic products in certain scenarios, particularly for large parts, small to medium production runs (250–5,000 parts), and pembuatan prototipe cepat14. Its lower tooling costs and faster lead times make it attractive, though it falls short in design complexity and precision compared to injection molding. Injection molding, with its scalability and accuracy, is better suited for high-volume, intricate parts. Your choice hinges on balancing production goals, design needs, and budget.
-
